120W LED Stage Wash Bar RGB Smart Wall Washer Product Summary
120W LED舞台洗墙灯智能防水DJ灯产品总结
1. Basic Product Information / 产品基础信息
- Product Name / 产品名称: 120W LED Stage Wash Bar RGB Smart Wall Washer Waterproof DJ Lamp With APP and Remote Control（120W LED舞台洗墙灯RGB智能防水DJ灯，支持APP与遥控器控制）
- Brand / 品牌: EZIMI（芝米）
- Manufacturer / 制造商: Zhongshan Ezimi Light Source Co., Ltd.（中山市芝米光源有限公司）
- Manufacturer Experience on 环球商务网 / 厂家阿里平台经验: 2 years（2年）
- Place of Origin / 产地: Guangdong, China（中国广东省）
- Warranty Period / 保修期: 1-Year（1年）
2. Core Technical Parameters / 核心技术参数
| Parameter Category / 参数类别 | Details / 详情 |
|---|---|
| Power / 功率 | 120W (variations include 24W, e.g., RGBCW-24W-36Leds) / 120W（另有24W等规格，如RGBCW-24W-36Leds） |
| LED Quantity / LED数量 | 36/72/108/144/180/216 pcs upgraded high-quality LEDs / 36/72/108/144/180/216颗升级高品质LED灯珠 |
| Light Color / 灯光颜色 | RGBCW (16 million colors + Cold White + Warm White) / RGBCW（1600万种颜色+冷白+暖白） |
| Color Temperature / 色温 | 2700K-6000K (Warm White to Cold White) / 2700K-6000K（暖白至冷白） |
| Input Voltage / 输入电压 | AC 85-265V (universal voltage: AC100-240V) / AC 85-265V（通用电压：AC100-240V） |
| IP Rating / 防护等级 | IP66 (suitable for outdoor use) / IP66（适合户外使用） |
| Beam Angle / 光束角 | 120 degrees / 120度 |
| Lamp Body Material / 灯体材质 | Die-cast aluminum / 压铸铝 |
| Product Size (for 24W model) / 产品尺寸（24W型号） | 415mm × 65mm × 40mm (16.34in × 2.56in × 1.57in) / 415毫米×65毫米×40毫米（16.34英寸×2.56英寸×1.57英寸） |
| Single Package Size / 单包装尺寸 | 46cm × 17cm × 10cm / 46厘米×17厘米×10厘米 |
| Single Gross Weight / 单台毛重 | 1.570 kg / 1.570千克 |
3. Core Product Functions / 产品核心功能
- Dimmable Brightness / 亮度可调: 0% - 100% brightness adjustment, meeting different lighting intensity needs / 0%-100%亮度调节，满足不同光照强度需求
-
Multi-Color & Color Temperature Control / 多颜色及色温控制:
- 16 preset color options / 16种预设颜色可选
- Independent on/off and adjustment of Warm White/Cold White / 暖白/冷白独立开关及调节
- Support for 16 million custom colors / 支持1600万种自定义颜色
-
Multiple Operation Modes / 多种运行模式:
- 8 basic modes: FLASH, JUMP3, FADE3, JUMP7, FADE7, AUTO, QUICK, SLOW / 8种基础模式：闪烁、3色跳变、3色渐变、7色跳变、7色渐变、自动、快速、慢速
- Music Mode / 音乐模式：Color changes with music rhythm or external sound beats / 灯光随音乐节奏或外部声音节拍变化颜色
- Special effects: Flashing, Jumping, Pulsating (e.g., Pulsating rainbow, Pulsating red/green) / 特殊效果：闪烁、跳变、脉动（如彩虹脉动、红/绿色脉动）
-
Dual Control Methods / 双控制方式:
- 40-keys Remote Control / 40键遥控器控制
- APP Control / APP控制（支持智能操作）
- Timing Function / 定时功能: Customized timing settings, energy-saving and convenient / 支持自定义定时设置，节能且便捷
- Efficient Cooling / 高效散热: Die-cast aluminum housing + scientific heat dissipation design (special back design), ensuring durability and reliability / 压铸铝外壳+科学散热设计（背部特殊结构），保障产品耐用性与稳定性
- Wide Illumination Range / 广照明范围: Built-in reflective panel enhances brightness, suitable for large-area lighting needs / 内置反光板提升亮度，适合大面积照明需求
4. Product Application Scenarios / 产品应用场景
- Festivals / 节日场景: Christmas, Halloween, New Year, National Day, etc. (large-area color lighting creates festive atmosphere) / 圣诞节、万圣节、新年、国庆节等（大面积彩色照明营造节日氛围）
- Ceremonies / 庆典场景: Weddings, anniversaries, award ceremonies, etc. (warm/cold white + colored light matching for romantic/grand atmosphere) / 婚礼、周年庆、颁奖典礼等（暖白/冷白+彩色灯光搭配，营造浪漫/庄重氛围）
- Entertainment Venues / 娱乐场所: DJ parties, nightclubs, bars, KTVs, etc. (music mode matches rhythm to enhance entertainment experience) / DJ派对、夜总会、酒吧、KTV等（音乐模式匹配节奏，提升娱乐体验）
-
Outdoor & Indoor Spaces / 户外及室内空间:
- Outdoor: Building wall washing, square decoration, garden lighting (IP66 waterproof, suitable for outdoor use) / 户外：建筑洗墙、广场装饰、庭院照明（IP66防水，适合户外环境）
- Indoor: Stage performances, exhibition halls, shopping malls, home party decoration / 室内：舞台演出、展厅、商场、家庭派对装饰
5. Purchase Information / 购买相关信息
| Purchase Item / 购买项目 | Details / 详情 |
|---|---|
| Price Range / 价格范围 | $10.31 - $22.68 per piece (price varies by model/specification) / 每件10.31-22.68美元（价格随型号/规格变化） |
| Minimum Order Quantity (MOQ) / 最小起订量 | 1 piece / 1件 |
| Lead Time / 交货周期 |
|
| Selling Units / 销售单位 | Single item (sold individually) / 单件（按个销售） |
| Supplier Service Advantages / 供应商服务优势 |
|
| Product Variations / 产品规格选择 | Example: 1P-24W-36Leds-415*65*40mm (other models with different power/LED quantities available) / 示例：1P-24W-36Leds-415*65*40mm（另有不同功率/LED数量的型号可选） |
6. Usage Instructions / 使用说明
6.1 Installation / 安装要点
-
Installation Environment / 安装环境:
- Suitable for indoor and outdoor use (IP66 waterproof, but avoid long-term immersion in water) / 适合室内外使用（IP66防水，但避免长期浸泡水中）
- Choose a stable installation surface (e.g., wall, bracket) to ensure the lamp does not fall / 选择稳固的安装面（如墙面、支架），确保灯具不脱落
- Wiring Note / 接线注意: Use AC100-240V universal voltage, ensure correct connection of live/neutral wires, and cut off power before wiring / 使用AC100-240V通用电压，确保火/零线接线正确，接线前断开电源
- Angle Adjustment / 角度调节: The lamp supports 180-degree adjustment (refer to product structure), adjust the illumination angle according to actual needs / 灯具支持180度角度调节（参考产品结构），根据实际需求调整照明角度
6.2 Control Operation / 控制操作
-

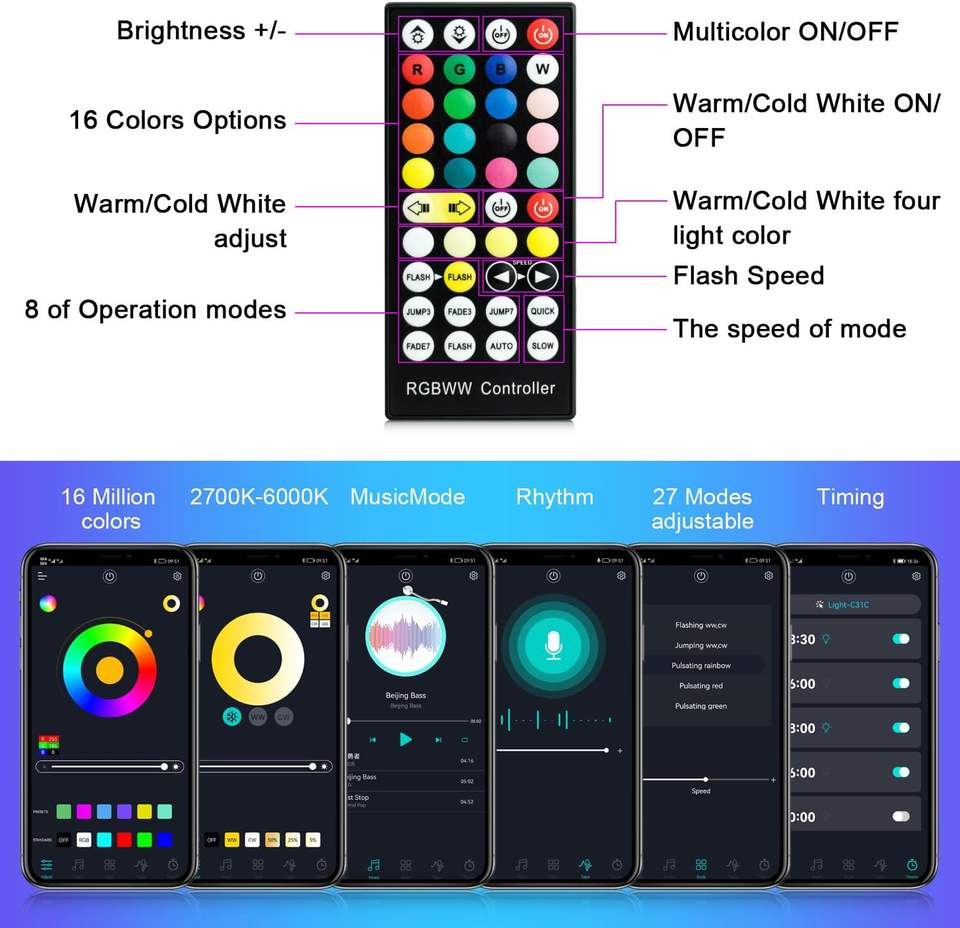

Remote Control (40-keys) / 遥控器（40键）操作:
- Power ON/OFF: Press the main power key to turn the lamp on/off / 电源开关：按主电源键开启/关闭灯具
- Color Selection: Press the color selection keys to switch 16 preset colors, or adjust Warm/Cold White via dedicated keys / 颜色选择：按颜色选择键切换16种预设颜色，或通过专用按键调节暖白/冷白
- Mode Switch: Press mode keys (FLASH, JUMP, FADE, etc.) to switch operation modes, and adjust speed via SPEED +/- keys / 模式切换：按模式键（闪烁、跳变、渐变等）切换运行模式，通过SPEED+/-键调节模式速度
- Brightness Adjustment: Press Brightness +/- keys to adjust 0%-100% brightness / 亮度调节：按亮度+/-键调节0%-100%亮度
-
APP Control / APP控制:
- Download the matching APP (refer to product manual or supplier guidance) and connect to the lamp via Bluetooth/Wi-Fi / 下载匹配APP（参考产品说明书或供应商指导），通过蓝牙/Wi-Fi连接灯具
- APP Functions: Custom color selection (16 million colors), timing setting, music mode (connect to mobile phone music), scene mode saving, etc. / APP功能：自定义颜色选择（1600万色）、定时设置、音乐模式（连接手机音乐）、场景模式保存等
6.3 Daily Maintenance / 日常维护
- Regularly wipe the lamp surface with a dry cloth to remove dust (avoid using corrosive cleaning agents) / 定期用干布擦拭灯具表面，清除灰尘（避免使用腐蚀性清洁剂）
- Check the power cord and plug regularly for damage; replace immediately if there is a short circuit or leakage risk / 定期检查电源线、插头是否破损，若有短路、漏电风险需立即更换
- For outdoor use, clean the lamp after rain to prevent dust and water stains from affecting light transmission / 户外使用时，雨后需清洁灯具，防止灰尘、水渍影响透光性
7. After-Sales Service & Guarantee / 售后与保障
- Warranty Coverage / 保修范围: 1-year warranty from the date of purchase, covering quality issues such as LED bead failure, controller malfunction (excluding man-made damage, improper use, or natural disasters) / 自购买日起1年保修，涵盖LED灯珠故障、控制器失灵等质量问题（不包括人为损坏、使用不当或自然灾害导致的损坏）
-
After-Sales Claim Process / 售后理赔流程:
- Contact the supplier (Zhongshan Ezimi Light Source Co., Ltd.) via 环球商务网 platform, provide order number and product photos/videos of the fault / 通过阿里平台联系供应商（中山市芝米光源有限公司），提供订单号及故障产品照片/视频
- Supplier confirms the fault within ≤8 hours (response time) and proposes a solution (repair, replacement, or refund) / 供应商在≤8小时内（响应时间）确认故障，提出解决方案（维修、更换或退款）
- For replacement/refund: Follow the supplier's "Easy Return" policy, return the faulty product (shipping cost may be negotiated) and receive a new product or refund / 更换/退款：遵循供应商“轻松退货”政策，退回故障产品（运费可协商），获取新产品或退款
- Technical Support / 技术支持: Supplier provides online technical guidance (e.g., APP connection, wiring issues) via 环球商务网 messaging or email / 供应商通过阿里消息或邮件提供在线技术指导（如APP连接、接线问题）
8. Product Advantages & Precautions / 产品优势与注意事项
8.1 Product Advantages / 产品优势
- High Cost-Effectiveness / 高性价比: Lower price than similar products, MOQ of 1 piece, suitable for individual users and bulk purchases / 价格低于同类产品，最小起订量1件，适合个人用户与批量采购
- Strong Adaptability / 适应性强: IP66 waterproof + AC85-265V universal voltage, usable in indoor/outdoor, domestic/foreign power environments / IP66防水+AC85-265V通用电压，可在室内外、国内外电源环境使用
- Rich Functions / 功能丰富: 16 million colors + 8 operation modes + music mode + timing function, meeting diverse lighting needs / 1600万色+8种运行模式+音乐模式+定时功能，满足多样化照明需求
- Durable Design / 耐用设计: Die-cast aluminum housing + efficient cooling, extending product service life / 压铸铝外壳+高效散热，延长产品使用寿命
8.2 Precautions / 注意事项
- Do not exceed the rated voltage (AC85-265V) to avoid burnout of the lamp or controller / 不可超过额定电压（AC85-265V），避免灯具或控制器烧毁
- Keep the lamp away from high-temperature sources (e.g., stoves, heaters) to prevent damage to the housing and internal components / 避免灯具靠近高温源（如炉灶、加热器），防止外壳及内部元件损坏
- For children, use the product under adult supervision to avoid electric shock or accidental injury / 儿童使用需在成人监护下进行，避免触电或意外受伤
- When replacing parts (e.g., power cord), use original accessories provided by the supplier to ensure compatibility and safety / 更换配件（如电源线）时，使用供应商提供的原装配件，确保兼容性与安全性
